Shadow Wing 2 BeQuiet! 120mm PWM White
Shadow Wing 2 BeQuiet! 120mm PWM White
Out of stock
Comparte
Couldn't load pickup availability
The white 120mm PWM Shadow Wings 2 offers extremely quiet operation and reliable cooling at low rpm. The most important features include:
- Quiet operation with up to 15.9 dB(A)
- Fins with optimized airflow
- Anti-vibration mounting system prevents transmission of vibrations
- Rubber coated fan cage minimizes vibration
- Highly Rated Rifle Bearing Technology
- Easy and secure installation with push pins
- PWM controlled fan speed via motherboard
- Product conception, design and quality control in Germany
- Three-year manufacturer's warranty
Shadow Wings 2 fans are the ideal choice for everyone who appreciates maximum silence for their PC case.
EXTREMELY QUIET OPERATION
Thanks to the fins with optimized airflowThe Shadow Wings 2 120mm PWM White fan blades have been optimized to ensure maximum airflow, resulting in extremely quiet operation with no compromises on solid cooling. They run at just 15.7 dB(A) even at their top speed of 1,100rpm. The ideal choice for all those who appreciate maximum silence for their PC case.

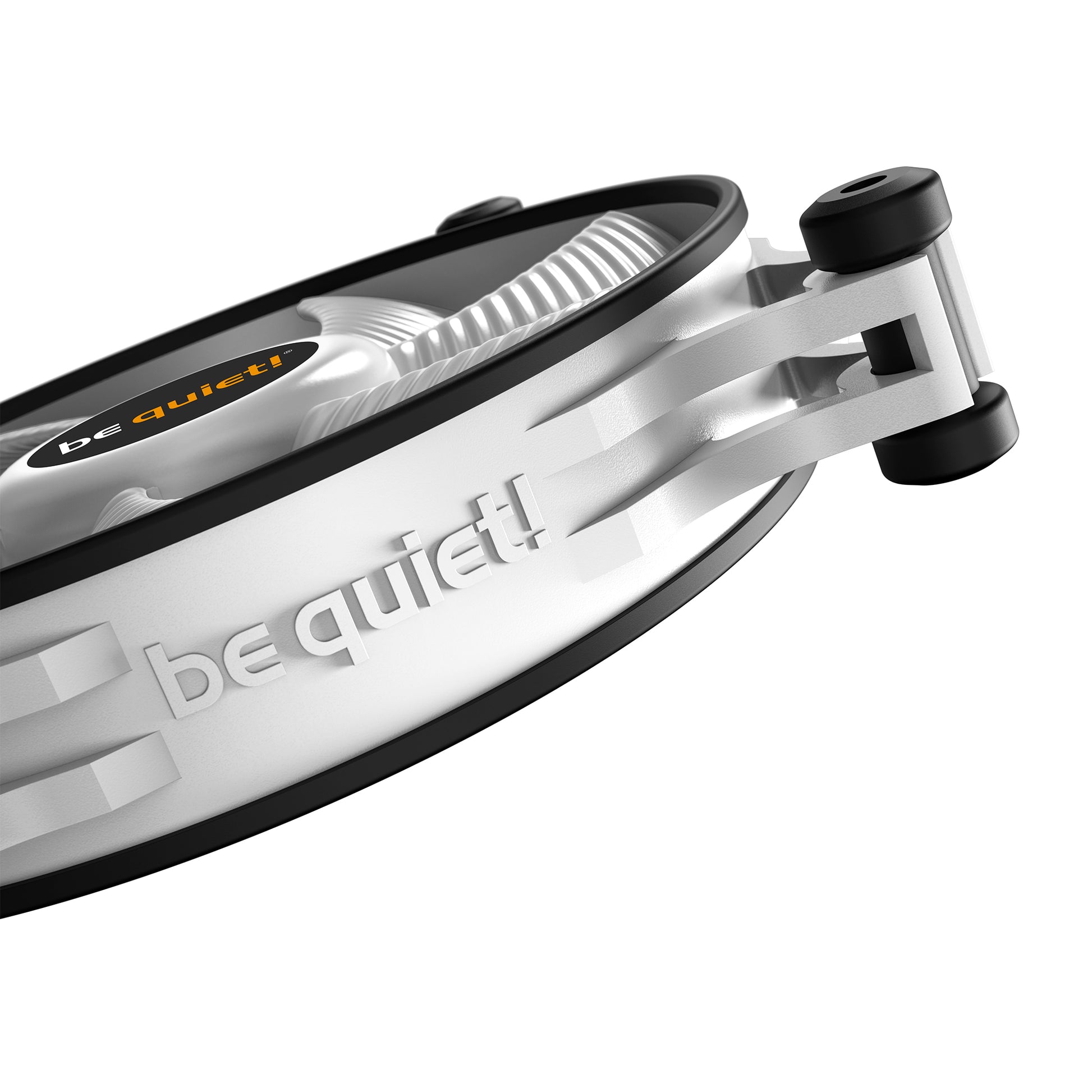

ANTI-VIBRATION CONCEPT
Reduces vibrations to a minimumRemovable shock mounts on all four edges of the fan reduce vibrations being transmitted to the PC case. In addition, the fan is equipped with a rubber-coated frame that reinforces the anti-vibration concept and ensures that vibrations are kept to a minimum.
RIFLE BEARING TECHNOLOGY
Gives the fan a very long lifespanThe Shadow Wings 2 PWM 120mm PWM White is the pinnacle of reliability excellence. This is achieved thanks to its high-quality rifle bearing technology, which guarantees a very long service life of up to 80,000 hours.

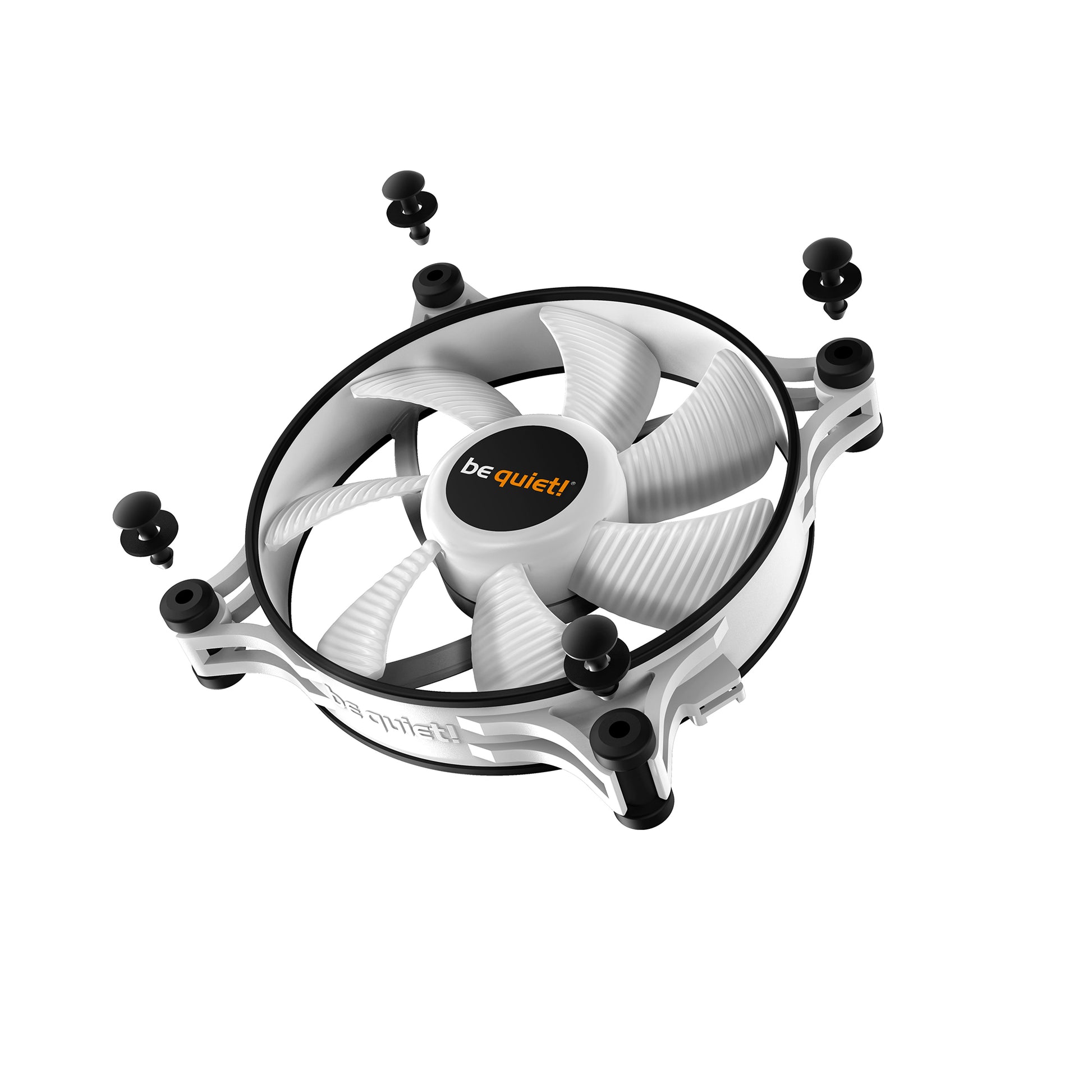

ASSEMBLY WITH PINS
For a simple installationWith Shadow Wings 2's anti-vibration mounting system, the fan is a breeze to install. The clamping pins guarantee a very fast and safe installation without the need for screws.
VARIABLE FAN SPEED FUNCTION
Vary the fan speedPulse Width Modulation (PWM) allows compatible 4-pin controllers to intelligently vary speed, minimizing fan noise level. With PWM, your system can increase cooling when needed, or run as quiet as possible if preferred.
Awards
General data
| Model | Shadow Wings 2 120mm PWM White |
| Measurements (mm) | 120 |
| color selection | White |
| Lightning | - |
| Fan speed @ 100% PWM / 12V (rpm) | 1100 |
| Noise level @ 100% PWM / 12V ( dB(A) ) | 15.9 |
| air flow @100% PWM / 12V ( CFM / m3/h) | 38.5 / 65 |
| Air pressure @ 100% PWM / 12V (mmH2O) | 0.82 |
information graphics
| Measurements (L x W x H), (mm) | 120x120x25 |
| Weight, incl. fixed cables (g) | 132 |
| support technology | Rifle |
| engine technology | 4-pole fan motor |
| Fixing with tightening pins | ✓ |
| Screw fixing | - |
Wires / Connectors
| Daisy chain for signal lighting | - |
| lighting connector | - |
| connector | 4-pin PWM |
| Wire length (mm) | 500 |
| cable sleeve | - |
Performance / Noise
| air flow @100% PWM / 12V ( CFM / m3/h) | 38.5 / 65 |
| Air pressure @ 100% PWM / 12V (mmH2O) | 0.82 |
| Noise level @ 100% PWM / 12V ( dB(A) ) | 15.9 |
| Pot life @ 25 °C (hours) | 80,000 |
Electric specifications
| DC rated voltage (V) | 12 |
| DC operating voltage (V) | 6 - 12 |
| Current consumption (A) | 0.12 |
| Safety current (A) | 0.12 |
| Input power (W) | 1.44 |
| LED rated current (A) | - |
Accessories
| 3-pin to 4-pin 12V adapter | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | - |
| tightening pins | 4 |
| silica gel washer | 4 |
| Others | - |
Security certificate
| certificates | EC / UL / TÜV |
environmental directives
| ROHS | - |
| WEEE | ✓ |
| triman | - |
